Liquid cooling hoses are relatively simple components, but their condition can have a direct effect on the reliability of a cooling circuit.
In an AI data center, hoses may connect cold plates, manifolds, CDUs and other parts of the coolant distribution system. They can remain in service for long periods while being exposed to pressure, temperature changes, bending and continuous coolant circulation.
A practical inspection program helps maintenance teams identify visible damage, leakage, connection problems and installation changes before they develop into more serious issues.
1. Why Inspect Liquid Cooling Hoses?
A hose that operates normally today may gradually develop changes during service.
Potential issues can result from:
- Repeated bending
- Mechanical abrasion
- Excessive temperature exposure
- Pressure cycling
- Improper routing
- Connection movement
- Coolant compatibility problems
- Installation damage
Regular inspection provides an opportunity to identify these conditions before they become a functional problem.

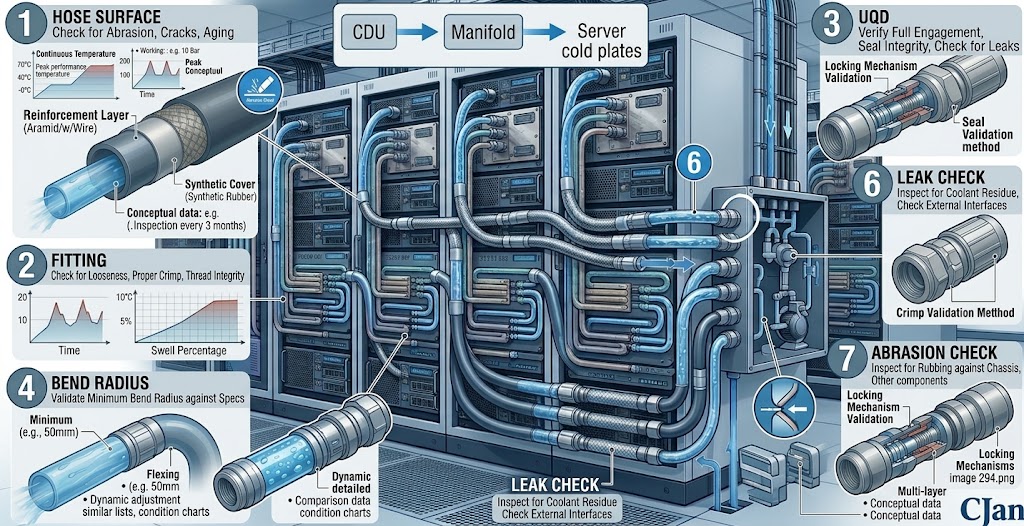

2. What Should Be Inspected?
A complete liquid cooling hose inspection should cover more than the visible hose surface.
A practical inspection can include:
- Hose outer surface
- Hose routing
- Bend radius
- Fittings
- UQD connections
- Sealing areas
- Signs of leakage
- Support and retention
- Connection orientation
- General installation condition

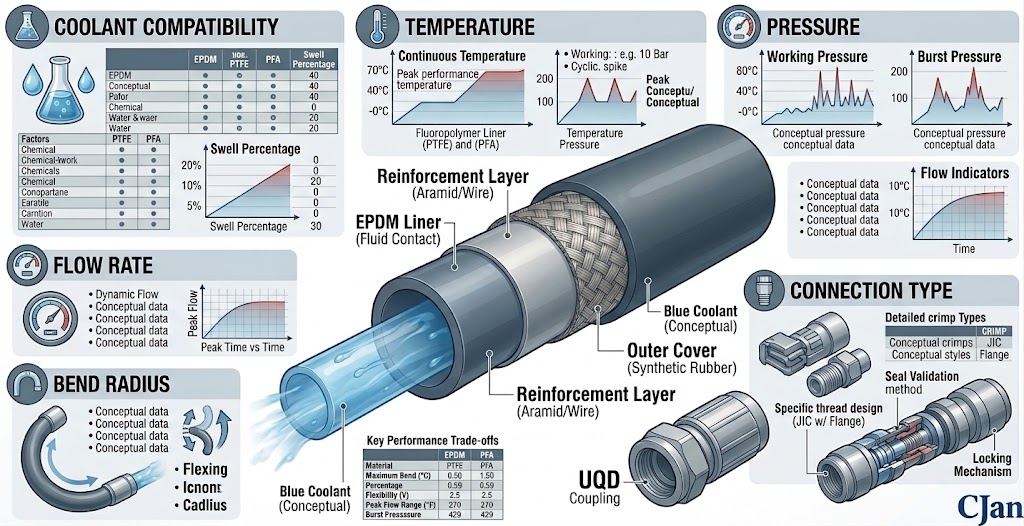

3. Start With a Visual Inspection
Visual inspection is usually the first step because it does not require the cooling circuit to be disassembled.
Look for obvious changes in the hose or surrounding components.
Examples include:
- Surface cuts
- Scratches
- Abrasion
- Cracks
- Bulging
- Flattening
- Unusual discoloration
- Signs of coolant residue
The inspection should be performed under adequate lighting so that small surface changes are not easily overlooked.
4. Inspect the Hose Near the Fittings
The hose-to-fitting transition deserves particular attention.
This area can experience mechanical stress because the flexible hose connects to a relatively rigid component.
Inspect the transition area for:
- Cracking
- Abnormal deformation
- Surface damage
- Movement
- Evidence of leakage
5. Look for Evidence of Coolant Leakage
Leakage is one of the most important conditions to identify during routine inspection.
Depending on the coolant and system configuration, evidence may include:
- Visible liquid
- Moisture around a connection
- Residue or deposits
- Staining
- Unexpected coolant loss
Not every leak will be immediately visible, so inspection should also consider system-level indications of coolant loss.
For additional information, see How to Prevent Liquid Cooling Hose Leakage in AI Data Center Systems.
6. Inspect the Fittings
Fittings should be inspected together with the hose.
Check for:
- Mechanical damage
- Corrosion where applicable
- Unexpected movement
- Misalignment
- Evidence of leakage
- Improper connection
A hose may remain intact while a fitting or connection develops a problem.
7. Inspect UQD Connections
When UQD connections are used, their condition should be included in the inspection program.
Check that:
- The coupling is correctly engaged
- The locking mechanism is in the expected position
- The connection shows no visible damage
- There is no evidence of coolant leakage
- The connection has not been subjected to abnormal mechanical loading
UQD components should be inspected according to the applicable manufacturer's instructions.
For more information about UQD selection, see UQD vs. Traditional Quick Disconnects for AI Data Center Cooling.
8. Check Hose Routing
Routing has a significant influence on the mechanical condition of a flexible hose.
A hose should not be forced into a routing configuration that produces excessive bending or twisting.
During inspection, check whether the hose:
- Has been sharply bent
- Is twisted along its axis
- Is compressed against another component
- Touches sharp edges
- Is exposed to unnecessary mechanical stress
Routing conditions can change after maintenance or equipment movement, so they should not be treated as permanent simply because the original installation was correct.
See Liquid Cooling Hose Routing: How to Avoid Kinks and Excessive Bending.
9. Check the Bend Radius
Every flexible hose has a practical bending limit.
If a hose is repeatedly bent below its specified minimum bend radius, mechanical stress can increase and may affect service life.
Inspection should therefore look for locations where the installed bend has become tighter than the original design condition.
For more detail, see Liquid Cooling Hose Bend Radius: Why Flexibility Matters in AI Server Racks.
10. Look for Kinks and Flattening
Kinking or flattening can change the effective flow area inside a flexible hose.
This may increase hydraulic resistance and can also create an undesirable mechanical condition.
Inspect areas near:
- Rack connections
- Manifolds
- Cold plates
- CDUs
- Cabinet penetrations
11. Inspect for Abrasion
Repeated contact with brackets, cabinet edges or nearby components can gradually damage a hose's outer surface.
Even when the inner tube remains intact, continued abrasion may reduce the protective function of the hose construction.
Inspect contact points for:
- Surface wear
- Exposed reinforcement
- Deep scratches
- Repeated rubbing marks
If abrasion is identified, the underlying routing or support condition should also be investigated.
12. Check for Abnormal Deformation
A change in hose geometry can provide an early indication that the assembly is being subjected to an unexpected load.
Examples include:
- Localized bulging
- Flattening
- Permanent bending
- Twisting
- Unusual movement
Any significant change should be evaluated against the original hose construction and installation requirements.
13. Inspect the Hose Cover
For multi-layer hoses, the outer cover provides protection to the internal construction.
Inspection should look for:
- Cracks
- Cuts
- Abrasion
- Swelling
- Discoloration
- Surface deterioration
A damaged cover does not automatically mean that the hose has failed internally, but it should trigger further evaluation.
14. What About Reinforcement?
Many liquid cooling hoses use reinforcement to provide mechanical strength and pressure capability.
The reinforcement is often not directly visible during normal inspection.
However, changes in the hose surface can sometimes indicate a problem affecting the internal construction.
For example, localized bulging or unusual deformation should not be ignored.
See How Hose Reinforcement Affects Liquid Cooling System Performance.
15. Check Connection Alignment
Hose connections should not be forced into alignment by bending the hose excessively.
During inspection, check whether the hose appears to be pulling sideways on a fitting or coupling.
The actual acceptable configuration depends on the hose and connection design, but unnecessary side loading should generally be avoided.
16. Inspect After Maintenance
Maintenance activities can unintentionally change hose routing or connection conditions.
After maintenance, inspect:
- Reconnected fittings
- UQD connections
- Hose routing
- Bend radius
- Support points
- Evidence of leakage
This is particularly important when components near the cooling loop have been removed or repositioned.
17. Inspection After Equipment Movement
AI server racks and other equipment may be moved during installation, upgrades or maintenance.
Even if the hose itself was not intentionally changed, equipment movement can alter:
- Hose length requirements
- Bend radius
- Connection orientation
- Mechanical loading
- Contact with nearby components
A visual inspection after equipment movement can help identify these changes.
18. Inspect the Environment Around the Hose
Hose condition cannot always be evaluated independently of its surroundings.
Inspect nearby components for conditions that could affect the hose, including:
- Sharp metal edges
- Moving components
- High-temperature surfaces
- Excessive vibration
- Potential abrasion points
Removing the source of mechanical stress can be more effective than simply replacing a damaged hose.
19. Check Operating Temperature Conditions
Temperature affects the behavior and service life of hose materials.
Inspection should consider whether the hose has been exposed to temperatures outside its intended operating range.
Relevant factors include:
- Coolant temperature
- Ambient temperature
- Nearby heat sources
- Temperature cycling
Material selection and operating temperature should be considered together.
See How Pressure and Temperature Affect Liquid Cooling Hose Reliability in AI Data Centers.
20. Check for Coolant Compatibility Issues
A hose can appear physically normal while its material is being affected by an incompatible coolant.
Potential signs can include changes in appearance, swelling, softening, hardening or other material changes.
When such changes are observed, the coolant and all wetted materials should be reviewed together.
See How Coolant Compatibility Affects Liquid Cooling Hose Selection for AI Data Centers.
21. Inspection Frequency Depends on the Application
There is no single inspection interval that is appropriate for every AI data center.
The inspection schedule can depend on:
- Operating conditions
- Hose construction
- Coolant type
- Pressure and temperature
- Installation environment
- Equipment criticality
- Maintenance procedures
Facilities should establish inspection intervals based on their own operating and maintenance requirements.
22. What Should Be Recorded During Inspection?
Inspection records can help identify changes over time.
A useful record may include:
- Hose identification
- Location
- Inspection date
- Hose condition
- Fitting condition
- UQD condition
- Routing condition
- Leakage status
- Corrective action
23. Photographs Can Improve Inspection Records
Photographs can provide a simple reference for comparing the condition of a hose over time.
For critical assemblies, maintenance teams may record images of:
- Hose routing
- Fitting connections
- UQD interfaces
- Known contact points
Consistent photographic records can make changes easier to identify during later inspections.
24. What Conditions Should Trigger Further Investigation?
Not every visual change means that a hose has failed, but certain conditions should not be ignored.
Further evaluation may be appropriate when inspectors identify:
- Active leakage
- Cracks
- Severe abrasion
- Exposed reinforcement
- Abnormal bulging
- Severe flattening
- Damaged UQD components
- Unexpected hose movement
25. Inspection Does Not Replace Testing
Visual inspection and performance testing serve different purposes.
An inspection can identify visible or installation-related problems, while pressure, leak and performance testing can provide additional information about assembly integrity.
For a newly manufactured or repaired assembly, the appropriate testing procedure should be followed in addition to visual inspection.
See Liquid Cooling Hose Assembly Testing: Pressure, Leak and Performance Checks.
26. Inspection Does Not Automatically Determine Replacement
A visible change does not always mean that the hose must immediately be replaced.
The decision should consider:
- Severity of the condition
- Hose construction
- Operating conditions
- Manufacturer requirements
- Application criticality
- Inspection history
However, conditions that indicate a loss of structural or sealing integrity should be handled according to the applicable maintenance procedure.
27. Build Inspection Into Preventive Maintenance
Liquid cooling hose inspection is most useful when it becomes part of a broader preventive maintenance program.
A practical program can combine:
- Routine visual inspection
- Connection checks
- Leak monitoring
- System pressure monitoring
- Flow monitoring
- Maintenance records
- Defined replacement criteria
28. A Simple Inspection Sequence
29. Liquid Cooling Hose Inspection Checklist
| Inspection Item | What to Check |
|---|---|
| Hose surface | Cuts, cracks, abrasion, discoloration and deformation |
| Hose routing | Kinks, twisting, compression and excessive bending |
| Bend radius | Compliance with the hose specification |
| Fittings | Damage, movement, alignment and leakage |
| UQD | Engagement, locking and visible damage |
| Leakage | Liquid, residue, staining or coolant loss |
| Environment | Abrasion, sharp edges, heat and vibration |
| Records | Date, location, condition and corrective action |
30. When Should an Inspection Become a Replacement Decision?
Inspection findings can provide the evidence needed for a replacement decision, but replacement criteria should be established before a failure occurs.
Facilities may define replacement criteria based on:
- Visible damage
- Leakage
- Material deterioration
- Repeated connection problems
- Service history
- Manufacturer recommendations
- Application requirements
The next stage in the maintenance process is determining when a hose should be removed from service.
See When Should Liquid Cooling Hoses Be Replaced? Key Warning Signs.
31. CJAN Liquid Cooling Hose Solutions
CJAN provides liquid cooling hose solutions for thermal-management applications where flexible coolant connections are required.
Relevant product options include:
The appropriate hose construction should be selected according to the coolant, pressure, temperature, flow, connection configuration and installation requirements of the application.
More information is available on the CJAN Liquid Cooling application page.
32. Conclusion
Inspecting liquid cooling hoses is a practical part of maintaining a reliable cooling system.
The inspection should cover the hose body, fittings, UQD connections, routing, bend radius, leakage and surrounding installation environment. Changes caused by maintenance, equipment movement or operating conditions should also be considered.
Visual inspection cannot replace pressure, leak or performance testing, but it can provide an early indication that further investigation may be necessary.
For AI data center cooling systems, this approach helps maintenance teams identify problems earlier and maintain better control over the condition of the coolant distribution system.
Learn more about CJAN liquid cooling hose solutions.
