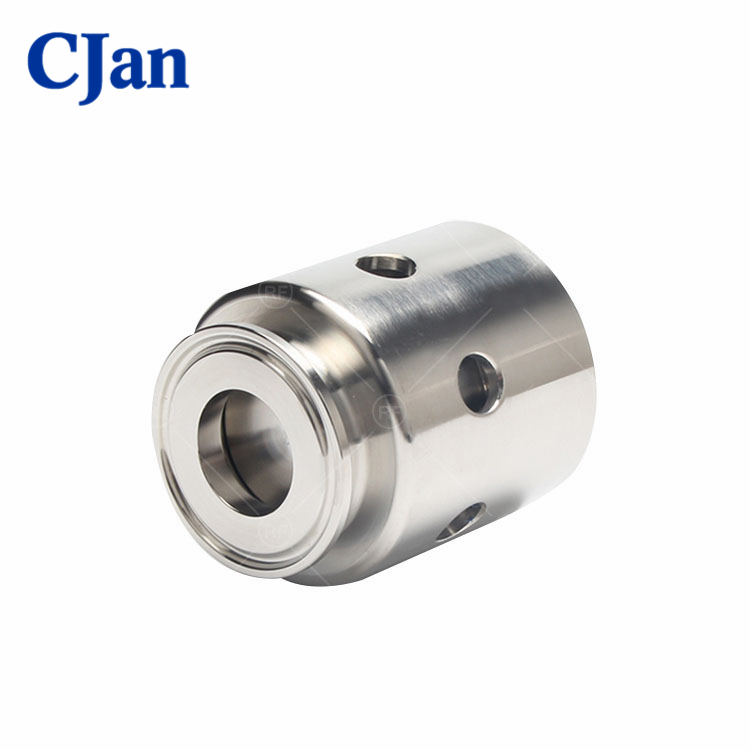

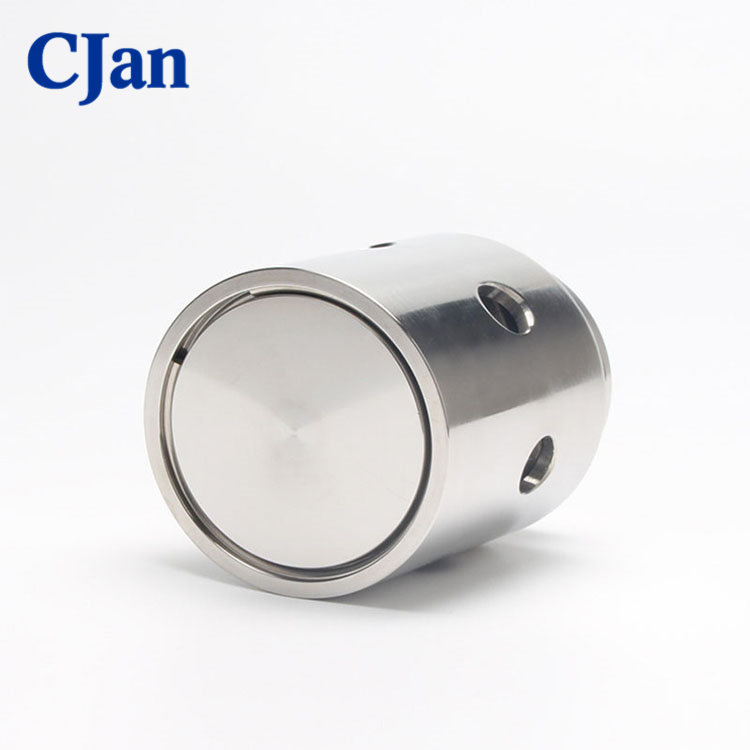

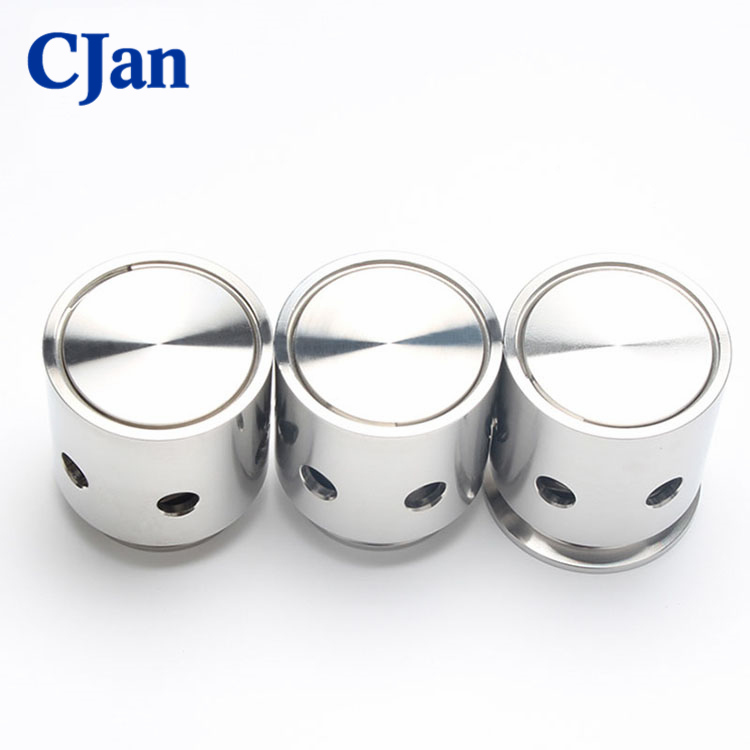

Sanitary Stainless Steel Clamp Quick Install Vacuum Safety Air Release Valve

This valve used in pressure vessel or pipe system, the air release valve has two functions:
When pressure is higher than the set pressure release air, otherwise is closed.
When the pipe system in vacuum valve will automatically open, which is to ensure the equipment and related instrument security.

Standard 3A
Material Quality SS304
Connection ends Clamp End
Port Size 2"
Ball Seat VMQ, FPM, EPDM
Continuous -10°C ~ +120°C
working temperature
Pressure  Vacuum Pressure -0.3 Bar, Pressure +2 Bar
Special Design we can produce according to your drawings
