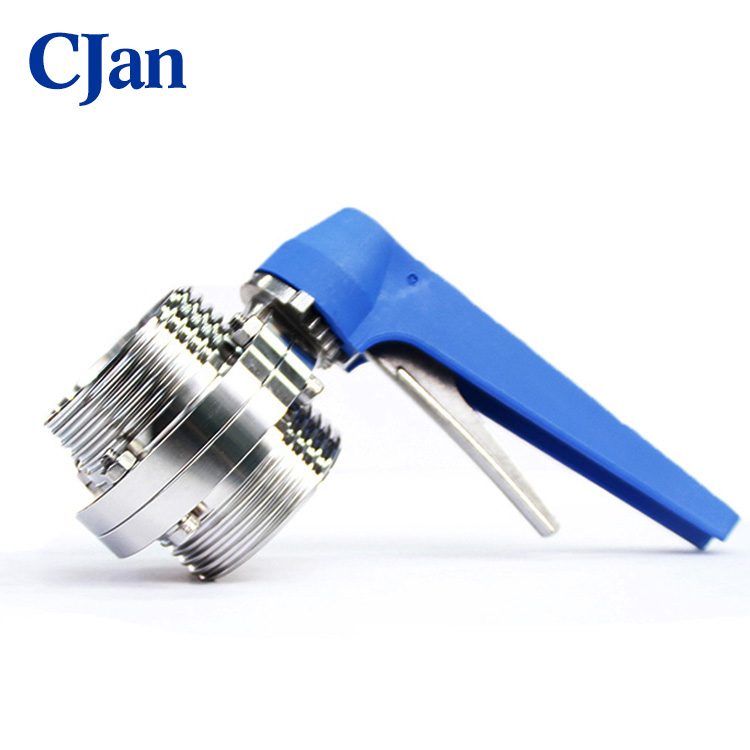

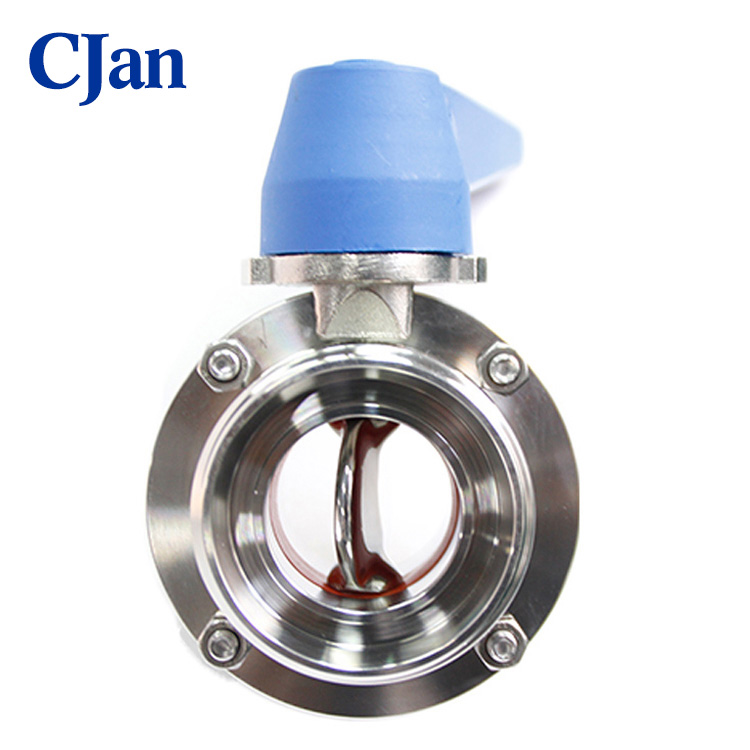

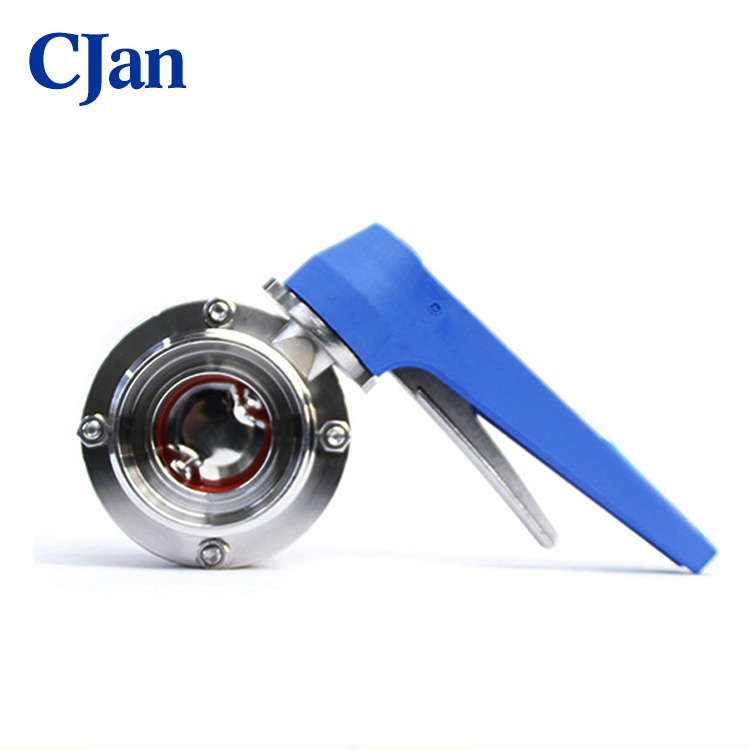

Stainless Steel Threaded Butterfly Valve With Blue Multi Position Handle

Stainless Steel Threaded Butterfly Valve With Blue Multi Position Handle

Stainless Steel Threaded Butterfly Valve With Blue Multi Position Handle

Product Name:  Stainless Steel Threaded Butterfly Valve With Blue Multi Positio
 Material:  SS304 or SS316L
 Standard:  SMS, 3A, DIN, IDF, RJT, ISO
 Size:  DN10-300 or 3/4" - 12"
 Connection Way:  Weld, Clamp, Thread, Flange,etc

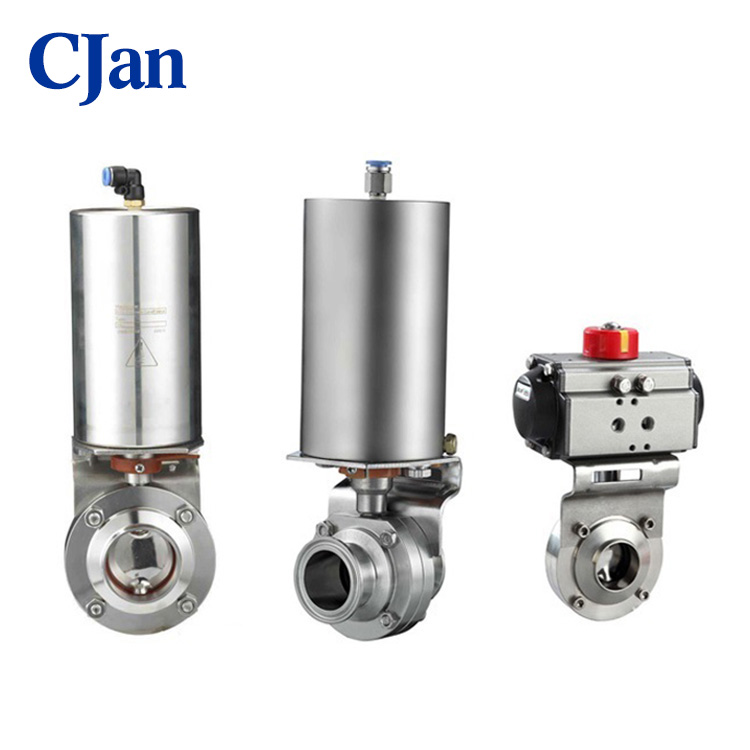

 Operated:  Manual, Pneumatic or Electric
 Manual Handle:

 Pull Handle (2-4 Positions), Plastic Trigger Handle (13 Positions),

 Stainless Steel Trigger Hanlde (13 Positions)

 Seal Material opition  Silicon, EPDM NBR or Viton
 Surface Finishing:  Ra0.8
 Working Temperature:  -10 degree to +120 degree (EPDM)
 Working Pressure:  0.2-10 Bar (DN-25/100), 0.2-8 Bar (DN-125/150)
 Certificate   ISO9001:2008, CE
 Application Scope  Dairy, Food, Beverage, Pharmacy, Cosmetic, Liquid Sampling, Biological
 All of the products have been 100% press tested before shipping.
