CJFLEX HAT

High airtightness hose for liquid cooling system in IDC (Internet Data Center)


The HAT series hoses are specially developed for industries with high airtightness requirements, such as water-cooled (liquid cooled) systems in IDC (Internet Data Center), which can effectively avoid coolant loss and ensure safe system operation.

Applicable media

ethylene glycol, chlorinated liquid, chlorine gas, etc

Features

High airtightness and anti permeability. The air permeability is less than 1/10 of that of conventional cooling hoses. The measured data at 80 ℃ effectively reduces coolant loss by 14 times compared to conventional cooling hoses.

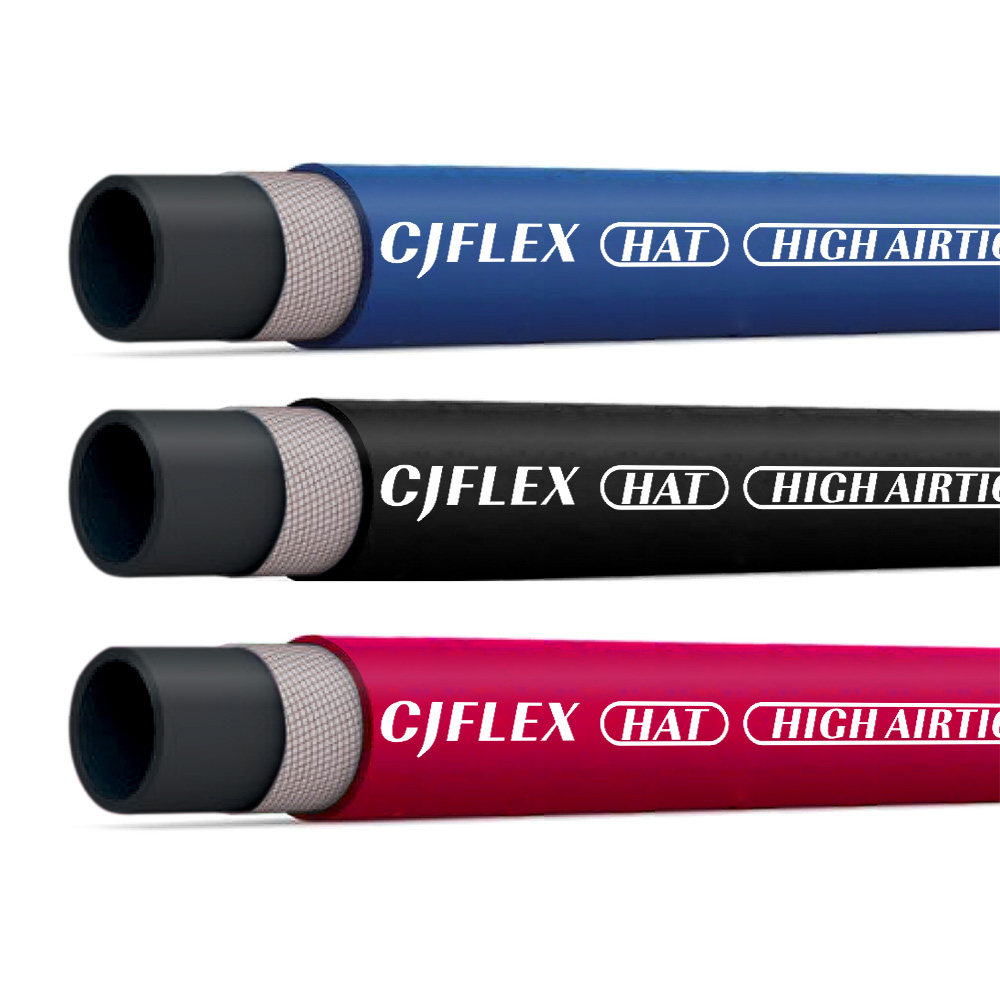

Structure

Inner rubber layer: black smooth custom synthetic rubber.

Reinforcement layer: high-strength polyester fiber thread.

Outer rubber layer: anti-aging EPDM synthetic rubber. According to customer requirements, can be customized a fireproof outer adhesive layer that meets the VL94-V0 standard. (Smooth surface below 1 inch, fabric surface above 1 inch).


Working pressure: 300psi (20Bar), safety factor: 4 times.

Working temperature: -40 ℃ -100 ℃

Environmental standards: comply with the EU ROHS directive.

Technical standard: HG/T2184

Colors: black, red, blue;

Other colors can be customized.

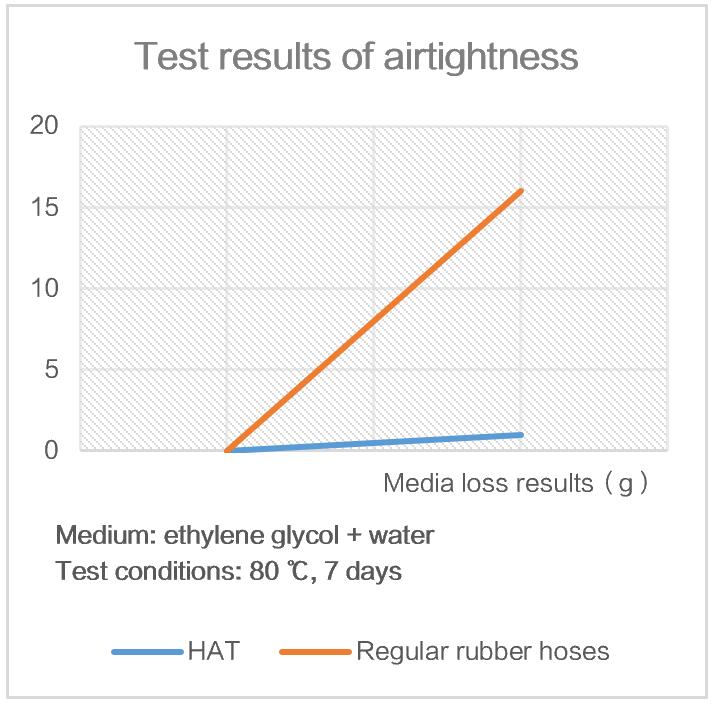

HAT - media loss results
Part no. ID OD Bending radius Work pressure Bursting pressure Length
inch mm mm mm PSI PSI m
HAT006 1/4" 6. 4 13 50 300 1200 100
HAT008 5/16" 7.9 15 60 300 1200 100
HAT010 3/8* 9.5 17 70 300 1200 100
HAT012 1/2" 12.7 21 100 300 1200 100
HAT016 5/8* 15.9 24 120 300 1200 60
HAT019 3/4” 19 28 150 300 1200 60
HAT025 1" 25. 4 36 200 300 1200 60
HAT032 1-1/4" 31.8 43.6 200 300 1200 40
HAT038 1-1/2" 38.1 52 230 300 1200 40
HAT050 2* 50.8 66 300 300 1200 40
HAT063 2-1/2" 63.5 79.5 400 300 1200 40
