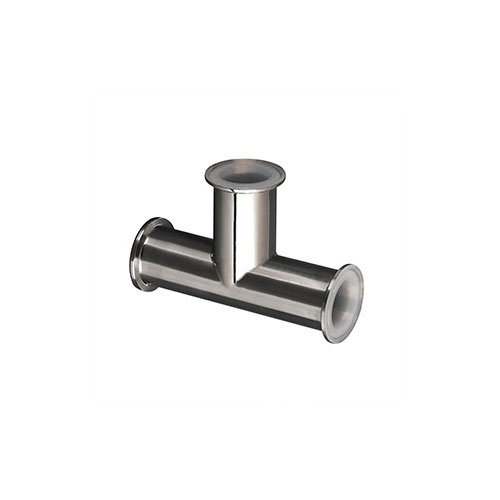

TYPE PLTTC - PFA lined tee tri-clamp fittings

TYPE PLTTC - PFA lined tee tri-clamp fittings

  • TYPE PLBV - Sanitary...

    TYPE PLBV - Sanitary PFA Lined Tri-Clamp Ball Valve

    Sanitary PFA Lined Tri-Clamp Ball ValveDue to its PFA-lined body's excellent corrosion resistance an...

  • TYPE PLFLT - PFA lin...

    TYPE PLFLT - PFA lined fixed flange with toothed hose shank​

    Fixed flange with toothed hose shank for connect with another hose closely, no easy to drop.Other fl...

Fitting standard: 3A.
FEP or PTFE liners are available.
Virgin and anti-static liners are available.

Remark: Can be customized.

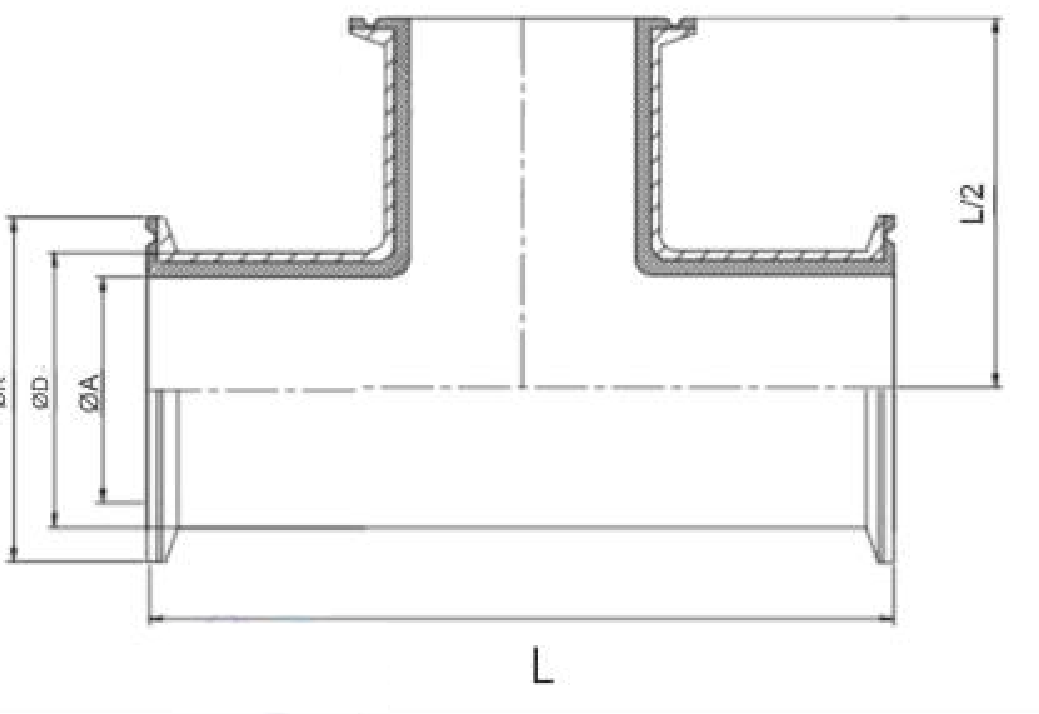

Part No. SIZE K(mm) D(mm) A(mm) L(mm)
PLTTC025S4 1" 50.5 32 22.1 93
PLTTC032S4 1-1/4" 50.5 32 25 105
PLTTC040S4 1-1/2" 50.5 42 34.8 113
PLTTC050S4 2" 64 50.8 44 123
PLTTC065S4 2-1/2" 77.5 63 55 138
