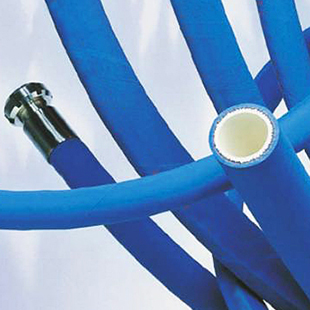

    TYPE FHC-Non - Toxic Hot Water Hose

    TYPE FHCNon-Toxic Hot Water HoseApplication:For hot water cleaning at temperatures up to + 90°C in food industries, bre...

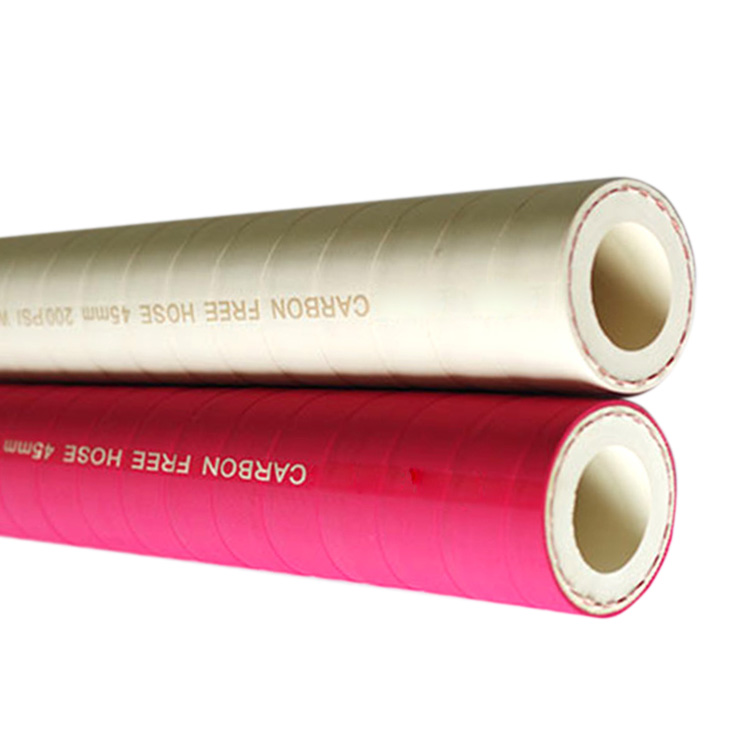

Type JY15

Water cooling system hose for conveying purified water of the internal reduction electric furnace with a voltage of 15 KV


Applications:

It is suitable for conveying purified water through the cable in the water cooling system of the internal reduction electric furnace with a voltage of 15KV. Pure carbon - free, high insulation, wear - resistant, anti - aging.

Construction:

Tube: white, smooth, pure, carbon-free, high-insulated EPDM synthetic rubber.

Reinforcement: high strength polyester fiber.

Cover: fabric impression, red or green, pure carbon - free, high - insulation EPDM synthetic rubber.

Shielding layer: Copper mesh braid layer, exterior covering high insulation rubber layer.

Electrical resistance: high insulation, excellent low leakage current. At 15KV DC/AC voltage, the leakage current is less than 20 Micro Amp.

Temperature range: -40 °C +120 °C

Environmental standards: EU pahs-2, REACH, ROHS directive.

Technical standard: HG/T2184, CJAN

Part no.

ID

OD

Bending radius

Work pressure

Bursting pressure

Weight

Length

inch

mm

mm

mm

PSI

PSI

kg/m

m

JY15032

1-1/4"

31.8

60

260

200

800

3

40

JY15038

1-1/2"

38.1

66

300

200

800

3.4

40

JY15042

42mm

42

70

336

200

800

3.5

40

JY15045

45mm

44.5

73

360

200

800

3.7

40

JY15050

2"

50.8

79

400

200

800

4.2

40
