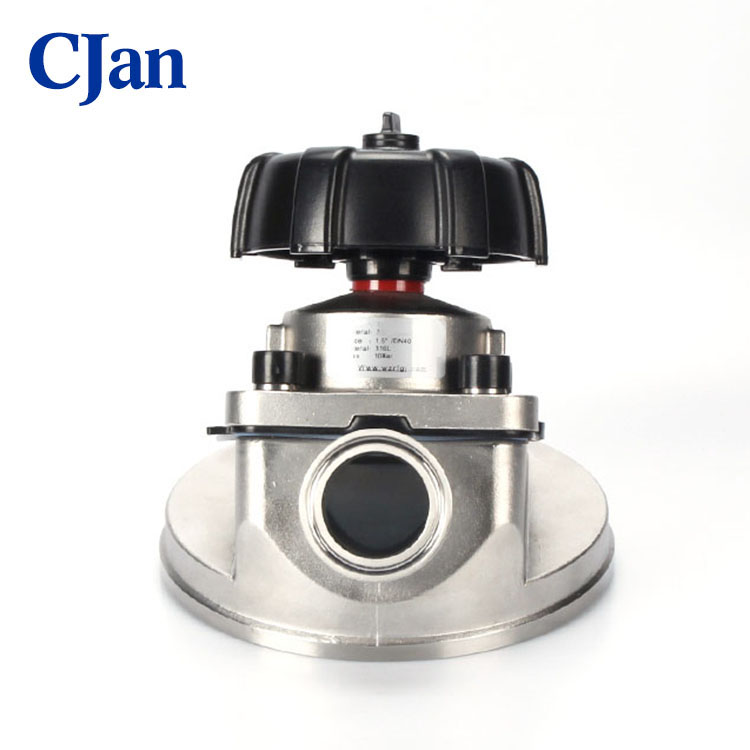

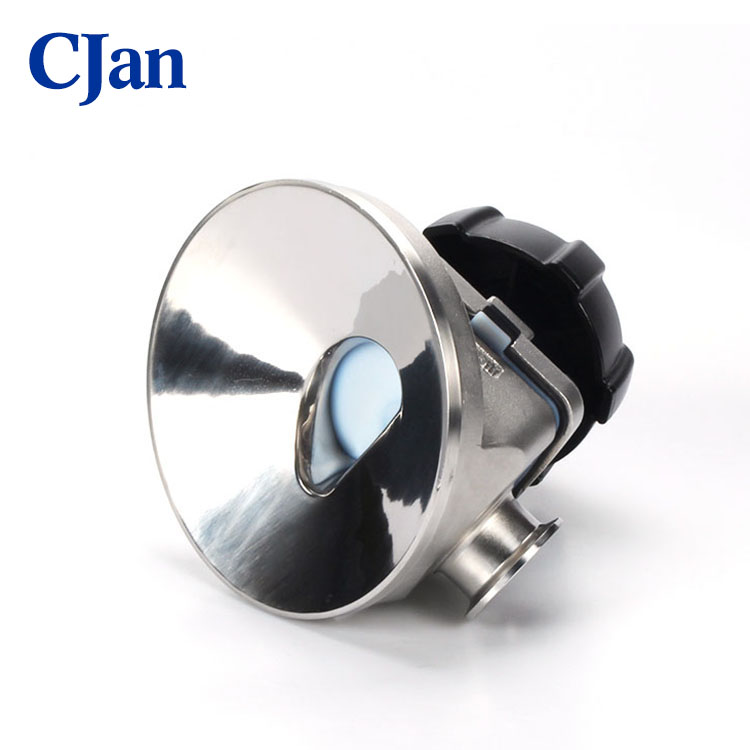

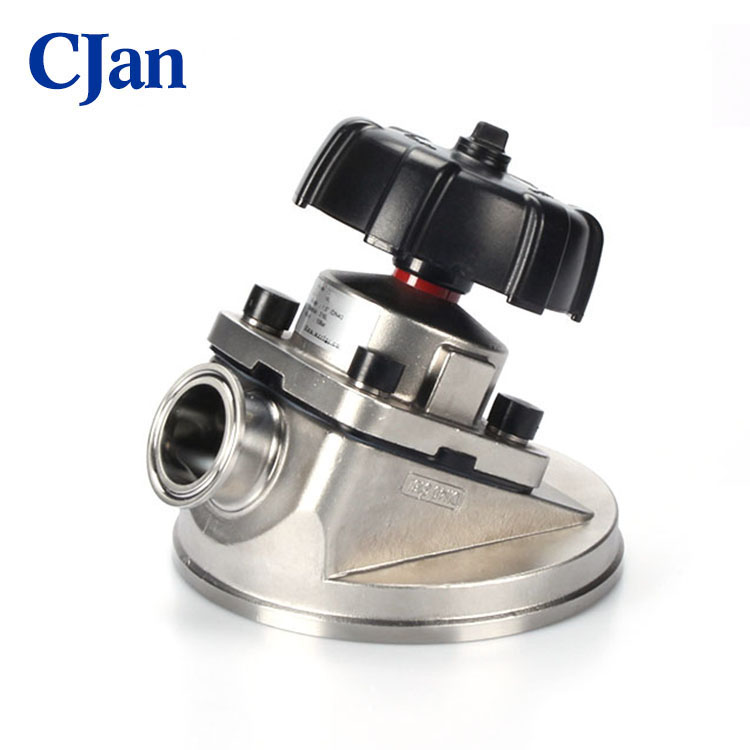

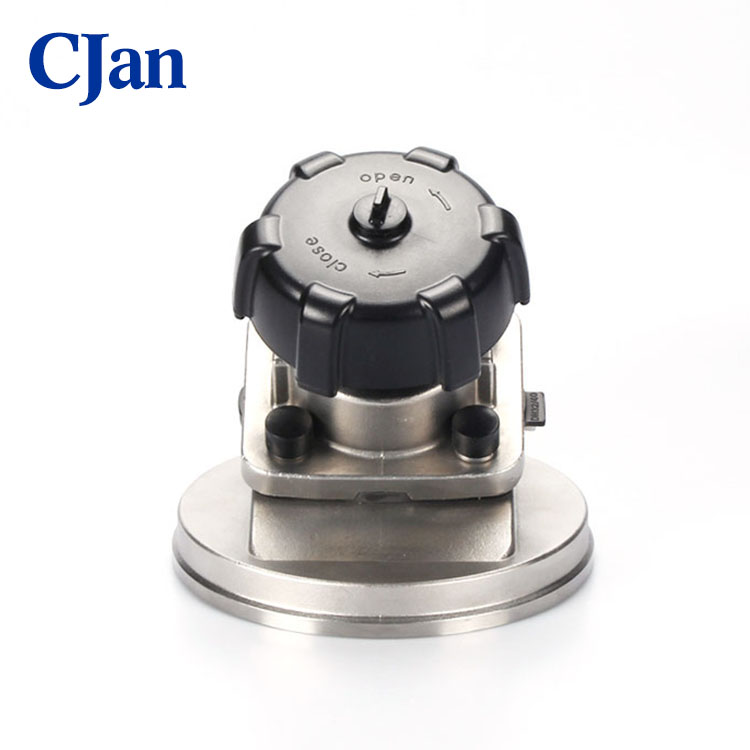

Stainless Steel Sanitary Tank Bottom Membrane Manual Diaphragm Valve

Stainless Steel Sanitary Tank Bottom Membrane Manual Diaphragm Valve

Stainless Steel Sanitary Tank Bottom Membrane
Manual
Diaphragm Valve

Product Name:

Sanitary  Diaphragm  Valve

Material:

SS304  / SS316L

Size:

DN25-DN50, 1"~2"

Polished

mirror polished, acid pickling, electric polished, sand blasting

Connection Mode:

Welded, Clamp, Threaded, flange

Gasket/Seal:

EPDM,FPM, EPDM+PTFE

Working Principal:

manual operation or pneumatic actuator

Pressure:

Low pressure , 0bar -1.0Mpa(10bar)

Thickness:

1.5mm--2mm

Standard:

SMS, DIN, 3A, ISO, IDF, RJT, BPE

Certificate:

ISO9001/2008, CE

Application scope:

Dairy, food, beer, beverage, pharmacy, cosmetic, water etc
