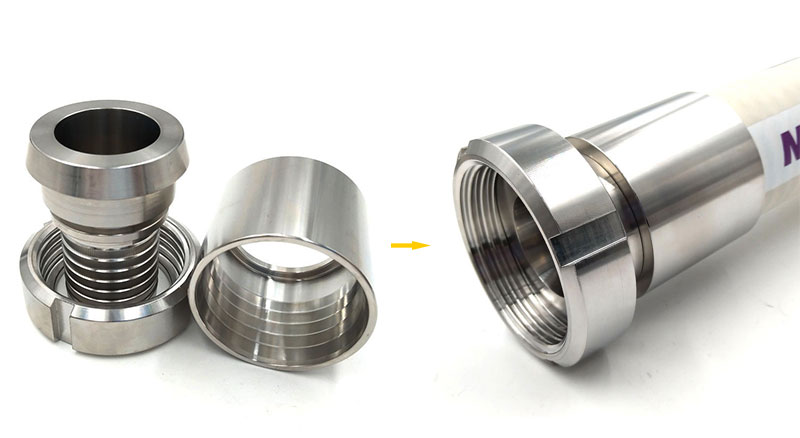

TYPE DFNT - DIN Female fitting with toothed hose shank with nut

TYPE DFNT - DIN Female fitting with toothed hose shank with nut

Female fitting with toothed hose shank with nut

Fitting standard: DIN11851
Nut material: SS304
Other materials are available.

Remark: Can be customized.

Part no. Material Size For hose Thread Weight
mm Kg/pcs
DFNT013S6LS4 SS316L+SS304 1/2" 13 RD 34 x 1/8" 0.14
DFNT019S6LS4 SS316L+SS304 3/4" 19 RD 44 x 1/6" 0.23
DFNT025S6LS4 SS316L+SS304 1" 25 RD 52 x 1/6" 0.34
DFNT032S6LS4 SS316L+SS304 1-1/4" 32 RD 58 x 1/6" 0.44
DFNT038S6LS4 SS316L+SS304 1-1/2" 38 RD 65 x 1/6" 0.56
DFNT040S6LS4 SS316L+SS304 1-1/2" 40 RD 65 x 1/6" 0.63
DFNT051S6LS4 SS316L+SS304 2" 50.8 RD 78 x 1/6" 0.81
DFNT064S6LS4 SS316L+SS304 2-1/2" 63.5 RD 95 x 1/6" 1.34
DFNT065S6LS4 SS316L+SS304 2-1/2" 65 RD 95 x 1/6" 1.37
DFNT076S6LS4 SS316L+SS304 3" 76 RD 110 x 1/4" 1.62
DFNT080S6LS4 SS316L+SS304 3" 80 RD 110 x 1/4" 2.27
DFNT100S6LS4 SS316L+SS304 4" 100 RD 130 x 1/4" 2.91
DFNT102S6LS4 SS316L+SS304 4" 102 RD 130 x 1/4" 2.91
