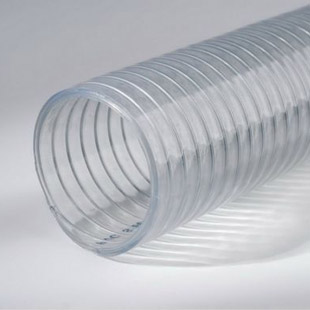

TYPE FUSD - FOOD GRADE PU SUCTION HOSE WITH WIRE HELIX

TYPE FUSD
FOOD GRADE PU SUCTION HOSE WITH WIRE HELIX

Application: suction and transport hose in the Food and Pharmaceutical Industry. For street cleaning vehicles, in the chemical industry, and for all applications where microbes resistance is required.
Features: ether based polyurethane hose reinforced with steel spiral to offer the best adhesion with the hose wall. Smooth inside to ensure optimization of flow properties. Resistant to microbes and Hydrolysis. Good resistance to mineral oils and chemicals, excellent resistance to ozone and weather. Suitable to deliver dry food stuff in accordance with EU and FDA. Very flexible even at low temperatures, better than a comparable ester based hose.
Colour: translucent with steel spiral.
Temperature Range: - 40°c+90°c.
Standards: FDA, EU, REACH

Part no.	ID		OD	Work pressure	Bursting pressure	Weight	Length
	inch	mm	mm	bar	bar	kg/m	m
FUSD012	1/2"	12	18	8	24	0.22	100
FUSD015	5/8"	15	22	6	18	0.30	50
FUSD019	3/4"	19	25	6	18	0.31	50
FUSD020	3/4"	20	26	6	18	0.32	50
FUSD022	7/8"	22	27	6	18	0.30	50
FUSD025	1"	25	33	5	16	0.54	50
FUSD032	1-1/4"	32	40	5	16	0.70	50
FUSD038	1-1/2"	38	48	5	15	1.00	50
FUSD045	1-3/4"	45	56	5	15	1.30	50
FUSD048	1-7/8"	48	59	5	15	1.40	50
FUSD050	2"	50	62	5	15	1.60	50
FUSD058	2-5/16"	58	69	4	12	1.60	40
FUSD064	2-1/2"	64	78	4	12	2.50	30
FUSD076	3"	76	90	4	12	3.00	30
